Description

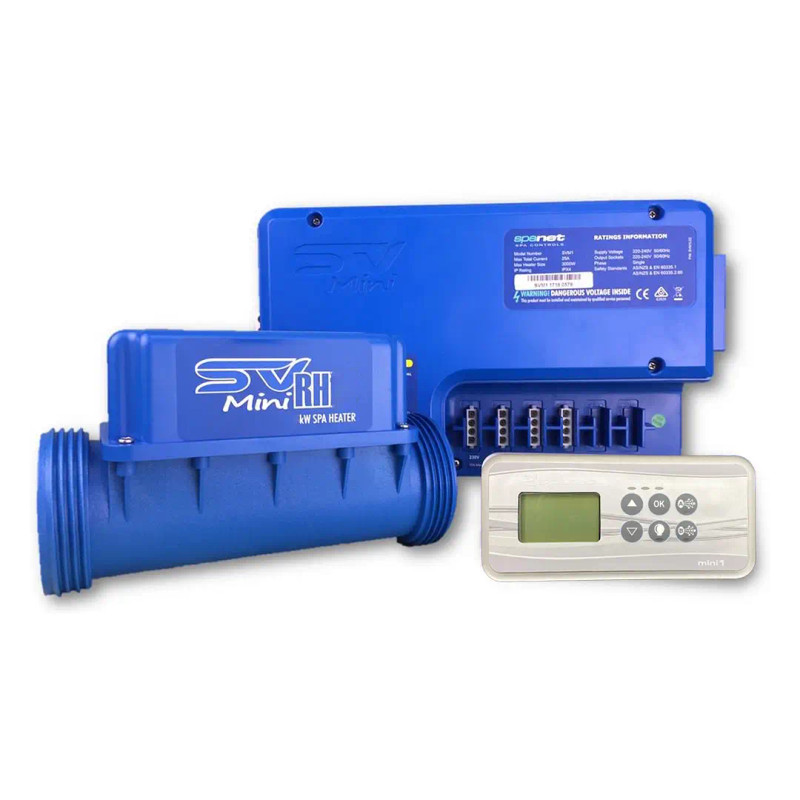

Spanet SV Mini 2 135,2.0, or 3.0kw Package.

Comes complete with controller, remote heater element and rectangle touchpad (bone touchpad available upon request).

SV Mini 2 230volt Output Sockets
PUMP 1: Circ Pump, 1Spd Pump or 2Spd Pump(the pump on this outlet must be pushing water through the heater)
PUMP 2: 1spd Pump(10amp Max)
PUMP 3: 1spd Pump(10amp Max
BLOWER: Blower(4.5amp Max)
230V: This outlet has a constant 230volts and is not switchable (can be used to power a heat pump or any other item requiring a constant 230volts)
O3/UV: This outlet is only to be used with an ozone system

SV Mini Low Voltage
1 x Touchpad Outlet
1 x Light(Spanet SV Light Only)
1 x Heat Pump Port
1 x Wifi Port

SV Mini Features
*In heater temp sensor
*Max Temp 41 degrees
*Adjustable Filtration
*Sleep Timer
*Heat Pump Interface
*Wifi Interface
*Programmable Load Shedding

Controller Specifications.
Heater Wattage: 1500 - 3000w
Max Current: 25amp
Power Lead: Hard Wired
Power Lead Length: N/A
Heater Unions: 50mm

Controller Dimensions
Length: 315mm
Height: 210mm
Width: 85mm
Weight: 5.1kg

Touchpad Dimensions
Face Size –
Length: 130mm
Width: 60mm
Depth: 30mm

Hole Size –
Length: 110mm
Width: 40mm

Touchpad Lead Length: 2.3m

Remote Heater Dimensions
Length: 310mm
Height: 118mm
Width: 100mm

Remote Heater Cable Length: 1.5m
