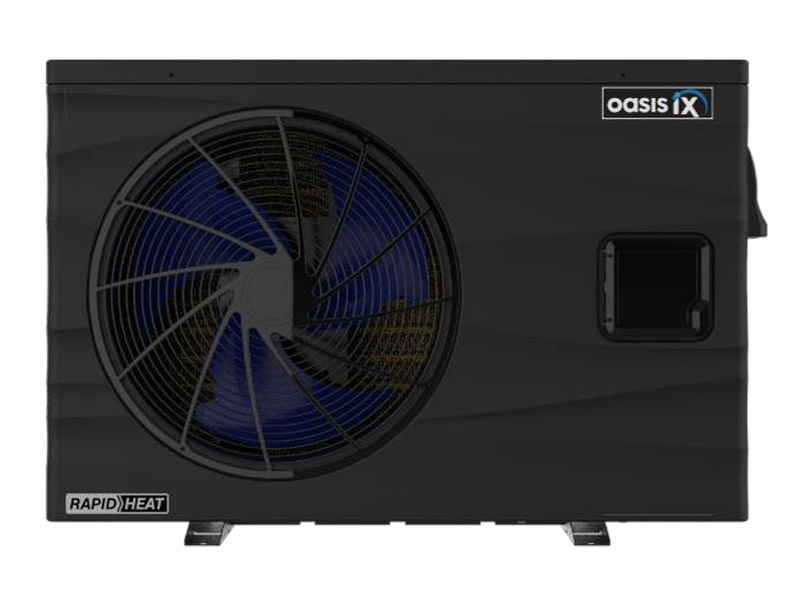

Oasis iX24 Heat Pump

Oasis iX24 Rapid Heat Inverter Spa Heat Pump | Commercial-Grade Ultra-Efficiency Heating & Cooling

The Oasis iX24 Rapid Heat Inverter is the ultimate top-tier smart heating and cooling solution engineered specifically for high-volume swim spas, large commercial spa installations, and heavy-use aquatic setups. Powered by intelligent RapidHeat software, the iX24 automatically delivers an express heat-up cycle to bring large bodies of water to temperature fast, then smoothly transitions into a low-power energy-saving mode to maintain it.

By using advanced variable-speed inverter technology, the iX24 continuously dials its power consumption up or down based on real-time heat demand. Unlike standard single-speed heat pumps that draw full power constantly, the iX24 tapers its power draw as your water nears its target temperature—slashing running costs by up to 75% compared to traditional electric inline spa heaters.

Key Features & Technology

• Smart RapidHeat Software: Automatically boosts heating capacity for an express initial heat-up, then seamlessly shifts into eco-mode to hold your set temperature with minimal power draw.

• Intuitive Digital Touchscreen: Features a modern, easy-to-use swipable digital screen interface for effortless setup, mode adjustment, and temperature control.

• Solar PV Ready: The intelligent controller can automatically adjust its heating capacity to consume excess electricity produced by your rooftop solar PV system, maximising free solar power usage.

• Gold Fin Condenser Coils: Features heavy-duty, anti-corrosive gold-coated coils that provide exceptional resistance to harsh outdoor elements and coastal air, while improving defrosting performance in cold weather.

• Dual Heating & Cooling: Offers total year-round temperature control. Effortlessly heat your swim spa up to 40°C during winter, or chill the water during hot summer months for a refreshing cold plunge recovery.

• Silent Mode for Council Compliance: Built-in Silent Mode dials down fan and compressor speeds to keep sound levels whisper-quiet—ideal for tight residential spaces and meeting local council noise regulations.

• Commercial Spiral Titanium Heat Exchanger: Ensures long-term durability and maximum heat transfer, resisting corrosion from salt, ozone, and harsh chemical sanitizers.

Technical Specifications

• Heating Capacity: 24.0 kW Class (Maximum heat output for large swim spas)

• Power Supply: 230V / 240V Single Phase

• Operating Ambient Temperature: -10°C to +43°C

• Maximum Water Temperature: 40°C

• Compressor: Variable Speed Twin-Rotary DC Inverter

• Refrigerant: Eco-Friendly R32

• Water Connection: 40mm / 50mm Unions Included

• Protection Rating: IPX4
